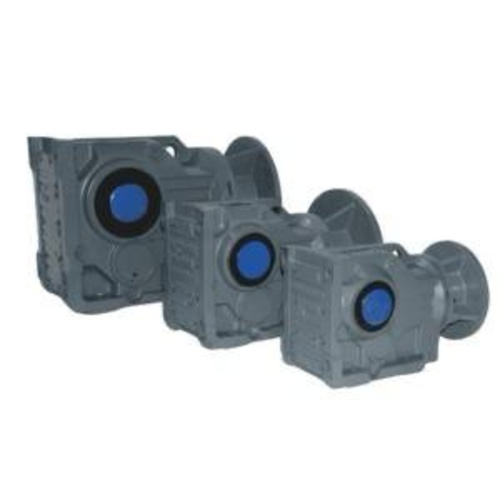

Flange Mounted Bevel Helical Gearbox with High Strength Construction

Name: Flange Mounted Bevel Helical Gearbox with High Strength Construction
Brand: ENNOWERA ENTERPRISE
Price: 50000.0 INR
Availability: InStock

Price 50000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Flange Mounted Bevel Helical Gearbox with High Strength Construction Specification

Gear Type
Bevel Gears

Usage
INDUSTRIAL GEARBOX

Material
Iron

Processing Type
Die Casting

Size
BASED ON MODEL SELECTION

Height
BASED ON MODEL SELECTION Millimeter (mm)

Gear Tooth Profile
Helical Gear

Product Type
BEVEL HELICAL GEARBOX

Gearing Arrangement
Helical

Weight
BASED ON MODEL SELECTION Kilograms (kg)

Direction
BI-DIRECTIONAL

Output Torque
UPTO 20000 N-m

Color
SILVER, BLUE AND CUSTOMISED AS PER USER REQ

Rated Power
0.37KW TO 90KW

Length
BASED ON MODEL SELECTION Millimeter (mm)

Width
BASED ON MODEL SELECTION Millimeter (mm)

Input Speed
1440 RPM

Output Speed
BASED UPON RATIO SELECTION RPM

Voltage
415 Volt (v)

Efficiency
95%

Flange Mounted Bevel Helical Gearbox with High Strength Construction Trade Information

Minimum Order Quantity
1 Piece

FOB Port
MUNDRA PORT

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
20 Pieces Per Week

Delivery Time
4 Days

Sample Available
No

Packaging Details
WOODEN BOX PACKING WITH INSIDE GEARBOX COVERED WITH PACKING LIKE THERMOCAOL, WOODEN PLATES, SHEETS

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

About Flange Mounted Bevel Helical Gearbox with High Strength Construction

PRODUCT NAME

Flange Mounted Bevel Helical Gearbox with High Strength Construction

GENERAL SPECIFICATIONS

Type: Bevel Helical Gearbox (Right Angle Drive)
Mounting: Flange Mounted (B5 / B14 Options Available)
Orientation: Horizontal / Vertical Output
Design: Compact, Rigid & Space Saving
Housing Material: High Grade Cast Iron (FG200 / SG Iron Optional)
Gear Material: Alloy Steel (Case Hardened & Ground)
Heat Treatment: Carburized & Hardened Teeth

PERFORMANCE SPECIFICATIONS

Power Range: 0.5 HP to 100 HP (0.37 kW to 75 kW)
Gear Ratio: 5:1 to 300:1
Output Speed: 5 RPM to 200 RPM
Torque Range: 100 Nm to 20000 Nm
Efficiency: Up to 94% 96%
Duty Cycle: Continuous Duty (S1 Rated)

SHAFT & MOUNTING DETAILS

Output Shaft Type: Solid / Hollow Shaft
Shaft Material: EN8 / EN19 Steel
Input Type: IEC Motor Mounting (B5 / B14)
Flange Standard: IS / DIN Standard
Coupling Option: Direct Coupled / Flexible Coupling

NOISE & VIBRATION FEATURES

Low Noise Operation: 65 75 dB
Vibration Level: Minimal due to precision gear grinding
Smooth Operation: Optimized tooth profile design

HIGH STRENGTH FEATURES

Robust & Rigid Housing for Heavy Load Applications
High Load Carrying Capacity Bearings
Case Hardened Alloy Steel Gears for Long Life
High Torque Transmission Capability
Suitable for Shock Load & Continuous Operation

LUBRICATION & COOLING

Lubrication Type: Splash / Oil Bath Lubrication
Oil Grade: ISO VG 220 / 320
Sealing: Nitrile Oil Seals (Leak Proof)
Cooling: Natural Cooling (Fan Optional)

OPERATING CONDITIONS

Ambient Temperature: -10C to +50C
Protection Class: IP55 (IP65 Optional)
Corrosion Protection: Painted / Powder Coated

APPLICATIONS

Conveyor Systems
Cement & Steel Plants
Material Handling Equipment
Crushers & Mixers
Packaging & Processing Machines
Chemical & Pharma Industry

OPTIONAL FEATURES

Brake Motor Attachment
Backstop (Anti-Reverse)
Torque Arm Mounting
Custom Shaft Dimensions
Special Paint / Food Grade Coating

High Strength Flange Mounted Bevel Helical Gearbox designed for heavy duty industrial applications with low noise, high efficiency, and long service life.
