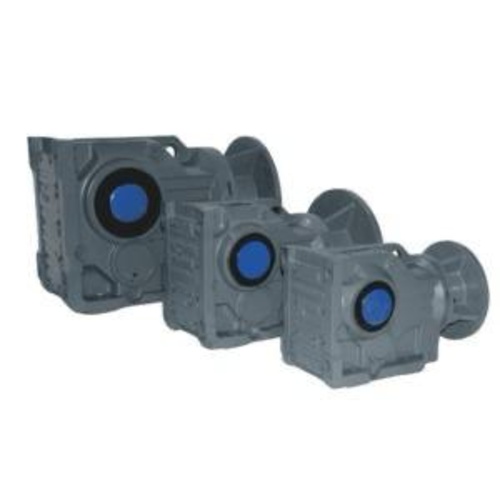

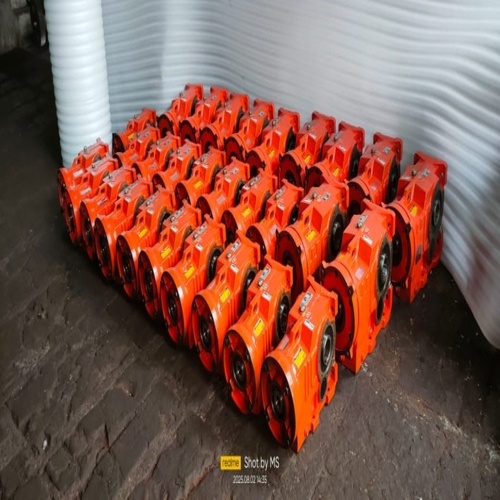

Foot Mounted Bevel Helical Gearbox

Price 50000.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Foot Mounted Bevel Helical Gearbox Specification

Gear Type
Bevel Gears

Usage
INDUSTRIAL GEARBOX

Material
Iron

Processing Type
Die Casting

Size
BASED ON SELECTION OF GEARBOX

Height
BASED ON SELECTION OF GEARBOX Millimeter (mm)

Gear Tooth Profile
Helical Gear

Gearing Arrangement
Helical

Product Type
HELICAL GEAR

Direction
BIDIRECTIONAL

Weight
BASED ON SELECTION OF GEARBOX Kilograms (kg)

Output Torque
UPTO 12500 N-m

Rated Power
0.37KW TO 110KW

Width
BASED ON SELECTION OF GEARBOX Millimeter (mm)

Length
BASED ON SELECTION OF GEARBOX Millimeter (mm)

Input Speed
1440 RPM

Output Speed
BASED ON REQUIREMENT OF USER RPM

Voltage
415 Volt (v)

Efficiency
HIGH EFFICIENT

Foot Mounted Bevel Helical Gearbox Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
MUNDRA

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
10 Pieces Per Week

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
WOODEN BOX AND CARTOON BOX

Main Export Market(s)
Asia

Main Domestic Market
All India

About Foot Mounted Bevel Helical Gearbox

Bevel Helical Gearboxes are heavy-duty industrial gear reducers designed for right-angle power transmission. These gearboxes combine helical gears for smooth power transmission and bevel gears for direction change (90). They offer high efficiency, high torque capacity, and reliable performance in continuous-duty industrial applications.

Gear Type Used

Helical Gears Used in the initial stages for smooth, efficient power transmission with low noise.
Bevel Gears (Spiral Bevel) Used in the final stage to change the direction of power transmission by 90.

Motor Power Range

1 HP 200 HP
(0.75 kW 150 kW)

Ratio Range

5:1 300:1

Torque Range

200 Nm 80,000 Nm

Mounting Positions

Foot Mount (Horizontal)
Flange Mount (B5 / B14)
Shaft Mount
Vertical Mounting

Customisation

Yes Customisable
Hollow Shaft / Solid Shaft
Special Output Shaft Size
Motor Flange Adaptor
Special Ratios
Cooling System (Fan / Oil Cooling for heavy duty)

Key Features

High efficiency (up to 9598%)
High torque transmission capability
Suitable for continuous industrial operation
Compact design with high load capacity
Smooth and low-noise operation

Typical Applications

Conveyor Systems
Material Handling Equipment
Steel Plants
Cement Plants
Mixers & Agitators
Cooling Towers
Packaging Machinery
