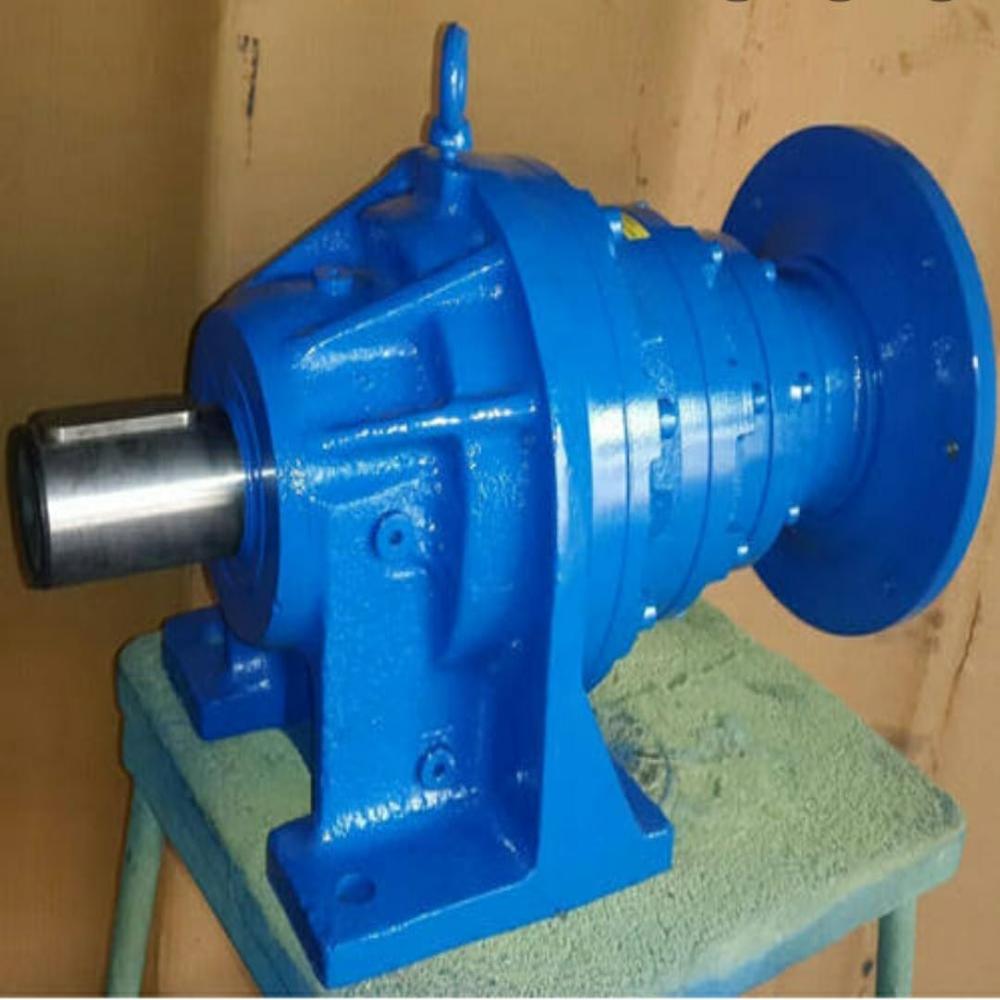

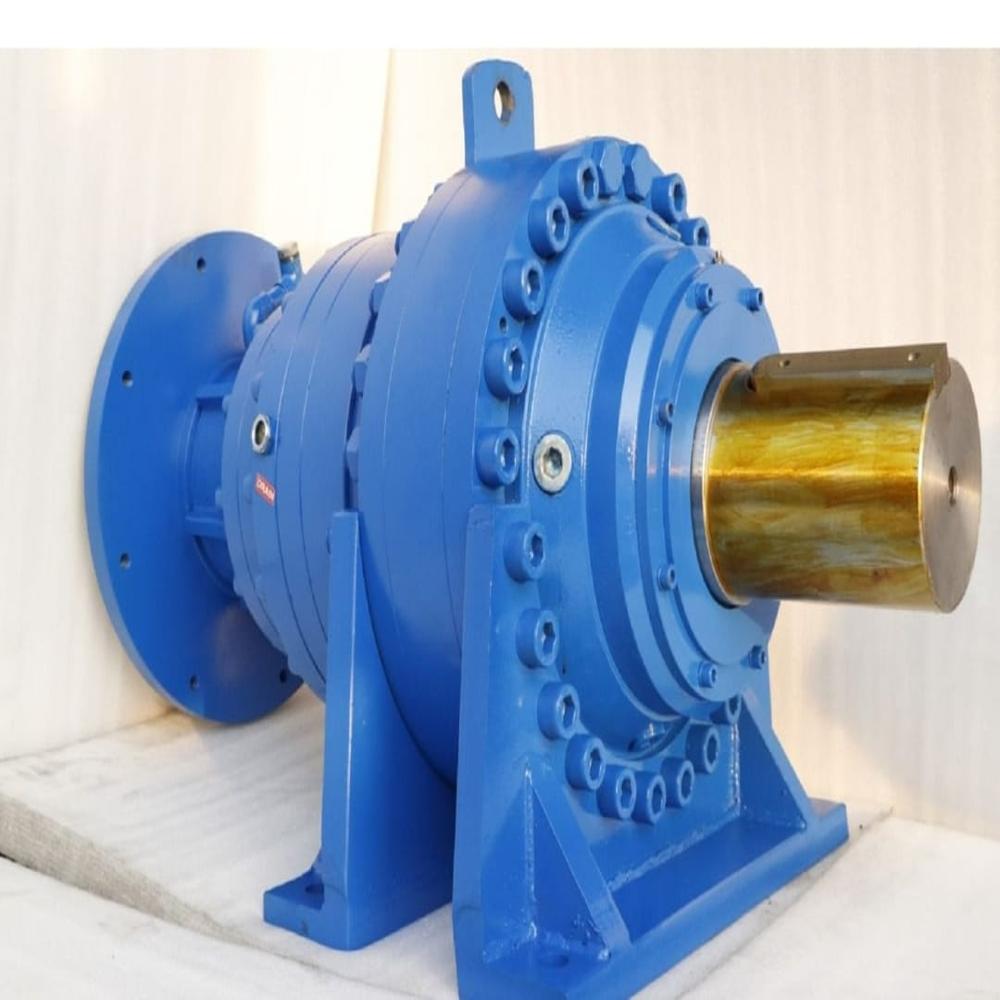

The Two Stage Planetary Gearbox is a compact and robust industrial power transmission solution designed for efficient speed reduction, reliable operation, and smooth power transmission. Its two-stage planetary arrangement provides an excellent balance between compact construction, efficiency, load distribution, and durability.

The gearbox is available with reduction ratios up to 30:1, making it suitable for applications requiring different combinations of output speed and torque.

Ratio & Output Speed

The output speed and torque characteristics depend on the selected reduction ratio.

For an input speed of approximately 1440 RPM:

• 5:1 Ratio approximately 300 RPM comparatively lower torque

• 10:1 Ratio approximately 144 RPM moderate torque

• 15:1 Ratio approximately 96 RPM moderate torque

• 20:1 Ratio approximately 72 RPM moderate torque

• 25:1 Ratio approximately 58 RPM moderate torque

• 30:1 Ratio approximately 48 RPM moderate torque

Note: Lower reduction ratios provide higher output speed with comparatively lower torque, while higher reduction ratios provide lower output speed with comparatively higher torque. Actual torque capacity depends on the gearbox model, size, motor power, and application load.

Key Features

• Two-stage planetary gear arrangement

• Reduction ratios up to 30:1

• Compact and space-saving design

• Efficient power transmission

• Smooth and stable operation

• Robust industrial construction

• Good load distribution through planetary gearing

• Reliable continuous-duty performance

• Multiple mounting configurations

• Various output shaft configurations

• Suitable for coupling with electric motors

Applications

• Industrial Conveyors

• Material Handling Equipment

• EOT Cranes and Hoists

• Mixers and Agitators

• Steel Industry Machinery

• Cement Industry Machinery

• Mining Equipment

• Crushers and Mills

• Extruders

• Rotary Equipment

• Process Machinery

• General Industrial Machinery

Product Advantage

The Two Stage Planetary Gearbox offers a practical solution where compact size, efficient speed reduction, reliable power transmission, and application-specific output speed are required. The appropriate ratio can be selected according to the required RPM and torque for the application.
