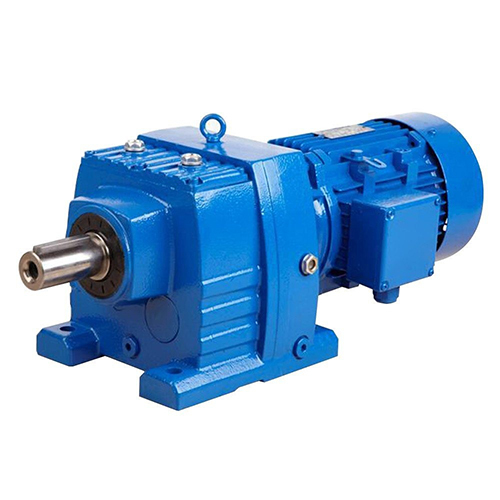

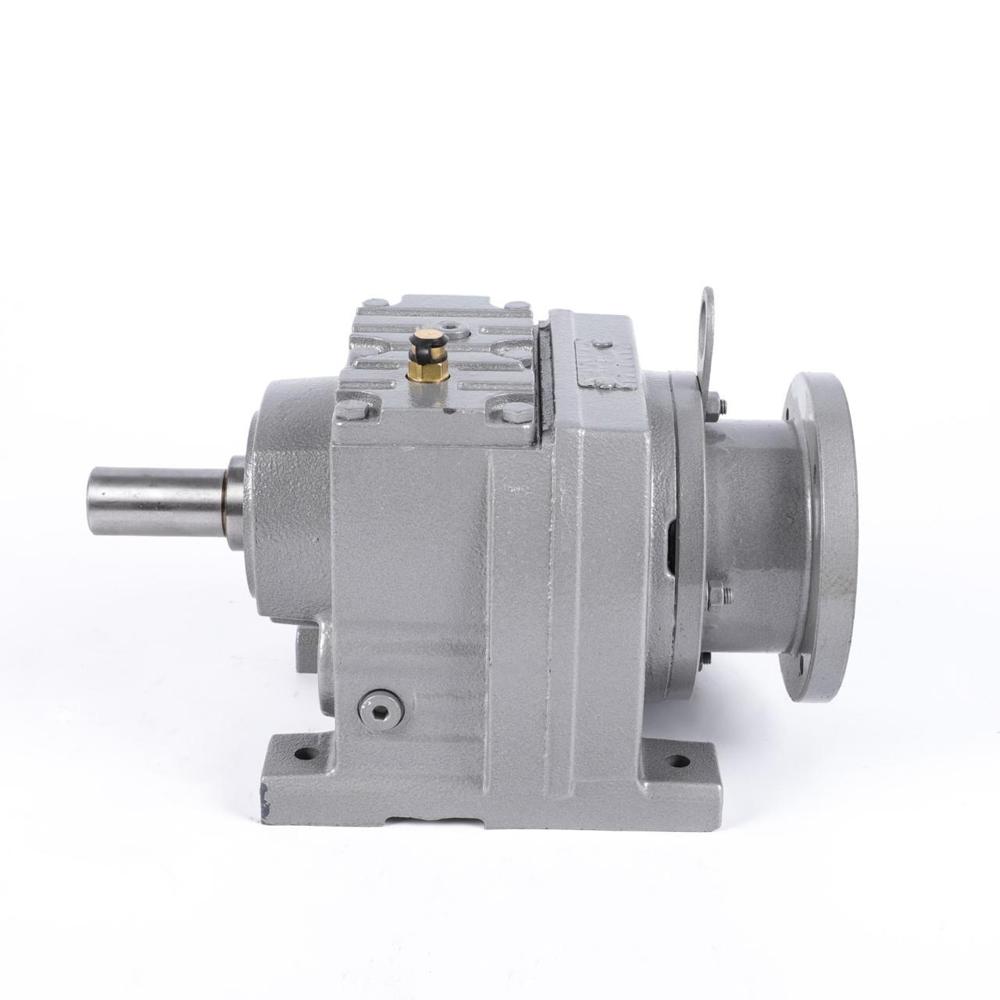

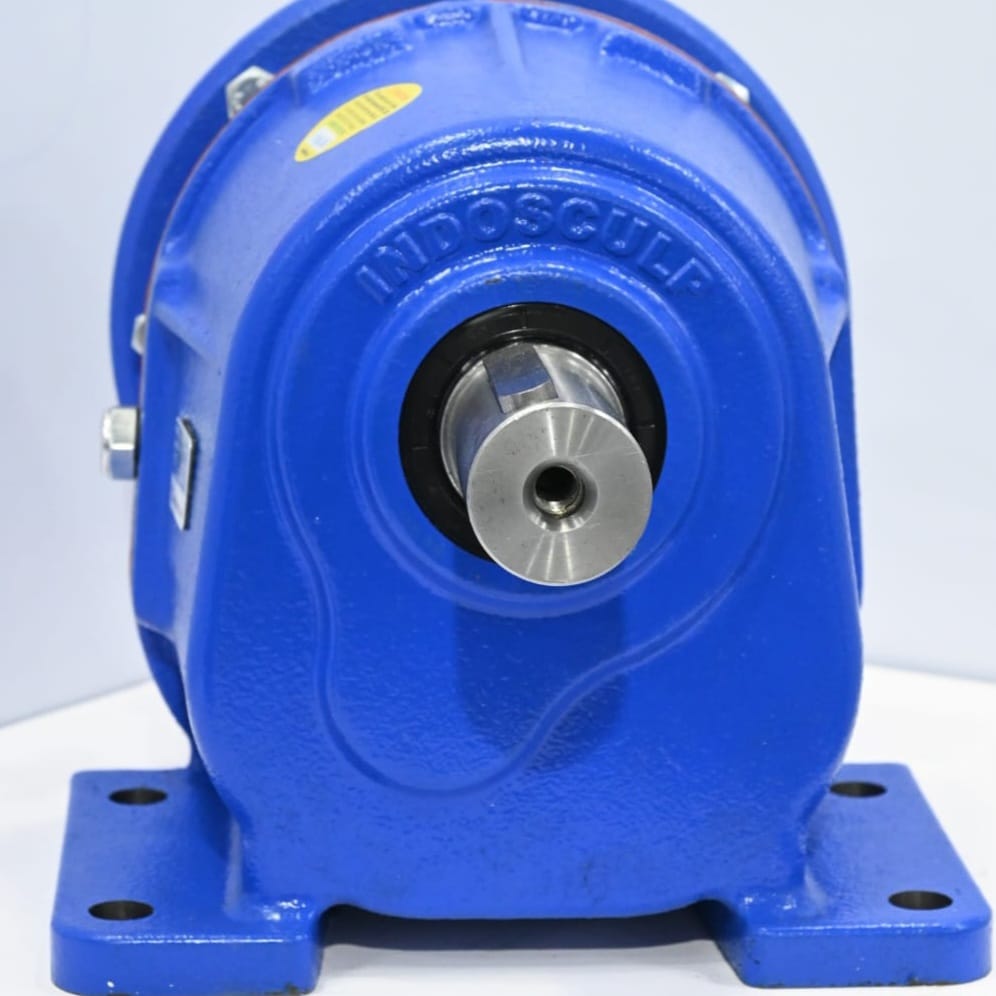

Send InquiryFoot Mounted Helical Gearbox
MOQ : 1 Piece
Foot Mounted Helical Gearbox Specification
- Gear Type
- Spur Gears
- Usage
- INDUSTRIAL PURPOSE
- Material
- Iron
- Processing Type
- Die Casting
- Size
- BASED ON MODEL SELECTION & RATIO
- Gear Tooth Profile
- Helical Gear
- Height
- BASED ON MODEL SELECTION Millimeter (mm)
- Gearing Arrangement
- Helical
- Product Type
- HELICAL GEARBOX
- Direction
- BI DIRECTIONAL
- Weight
- BASED ON MODEL SELECTION Kilograms (kg)
- Output Torque
- UPTO 8000 N-m
- Length
- BASED ON MODEL SELECTION Millimeter (mm)
- Width
- BASED ON MODEL SELECTION Millimeter (mm)
- Rated Power
- 0.37KW TO 90KW
- Input Speed
- 1440 RPM
- Output Speed
- AS PER USER REQUIREMENT RPM
- Voltage
- 415 Volt (v)
- Efficiency
- MORE THAN <=95%
Foot Mounted Helical Gearbox Trade Information
- Minimum Order Quantity
- 1 Piece
- FOB Port
- MUNDRA PORT
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID)
- Supply Ability
- 10 Pieces Per Week
- Delivery Time
- 1 Week
- Sample Available
- No
- Sample Policy
- Contact us for information regarding our sample policy
- Packaging Details
- WOODEN BOX , CARTOON BOX
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India
About Foot Mounted Helical Gearbox
INLINE HELICAL GEARBOX DETAILED SPECIFICATIONS
1. General Construction
- Gear Type: Helical (Single / Double / Triple Stage)
- Configuration: Inline (Co-axial input & output shaft)
- Mounting Options:
- Foot Mounted (B3)
- Flange Mounted (B5 / B14)
- Design Standard: ISO / DIN compatible
2. Power & Input Details
- Power Range:
- 0.18 kW to 75 kW (standard)
- Up to 200 kW (custom heavy-duty)
- Input Speed Options:
- 750 RPM
- 1000 RPM
- 1440 RPM
- 3000 RPM (high-speed input optional)
- Motor Compatibility:
- IEC Standard Motors
- TEFC (Totally Enclosed Fan Cooled)
- Brake Motor (optional)
- Explosion Proof Motor (optional)
3. Gear Ratio & Stages
| Stage | Ratio Range |
|---|---|
| Single Stage | 3:1 to 10:1 |
| Double Stage | 10:1 to 40:1 |
| Triple Stage | 40:1 to 200:1 |
- Custom Ratio: Available as per application
4. Output Parameters
- Output Speed: 5 RPM to 500 RPM
- Output Torque:
- Standard: up to 18,000 Nm
- Heavy Duty: up to 50,000 Nm
- Service Factor: 1.0 to 2.5 (application based)
5. Gear Details
- Gear Material:
- Case Hardened Alloy Steel (20MnCr5 / EN353)
- Heat Treatment:
- Carburized & Hardened
- Ground Tooth Profile
- Hardness:
- 5862 HRC
- Helix Angle: 15 to 25
- Quality Standard: DIN 6 or better
6. Shaft Details
Input Shaft
- Material: EN8 / EN24
- Type: Solid / Hollow
Output Shaft
- Type:
- Solid Shaft (Keyway as per ISO)
- Hollow Shaft (Shrink Disc optional)
- Surface Finish: Ground & polished
7. Housing (Body)
- Material:
- Cast Iron (FG200 / FG260)
- Aluminium (small sizes only)
- Construction:
- One-piece rigid housing
- Ribbed for heat dissipation
- Machining: CNC precision machined
8. Bearings
- Type:
- Taper Roller Bearings
- Deep Groove Ball Bearings
- Brand Options: SKF / FAG / NBC
9. Lubrication System
- Method:
- Splash Lubrication
- Forced Lubrication (for high load)
- Oil Grade:
- ISO VG 220 / 320 / 460
- Oil Seals: Nitrile Rubber (NBR) / Viton (optional)
10. Efficiency & Performance
- Efficiency per Stage: 96%
- Overall Efficiency:
- Single Stage: 9698%
- Double Stage: 9496%
- Triple Stage: 9294%
- Noise Level: < 65 dB
11. Cooling System
- Natural Air Cooling
- Optional Cooling Fan
- Optional Oil Cooling System
12. Protection & Standards
- IP Rating: IP55 / IP65 (optional)
- Temperature Rise: < 50C
- Ambient Temp: -10C to +50C
13. Accessories (Optional)
- Backstop (anti-reverse)
- Torque Arm
- Cooling Fan
- Oil Level Indicator
- Breather Plug
- Temperature Sensor (PT100)
14. Applications
- Conveyor Systems
- Crushers
- Mixers & Agitators
- Packaging Machines
- Textile Machinery
- Food Industry
- Cement Plants
- Material Handling Equipment
