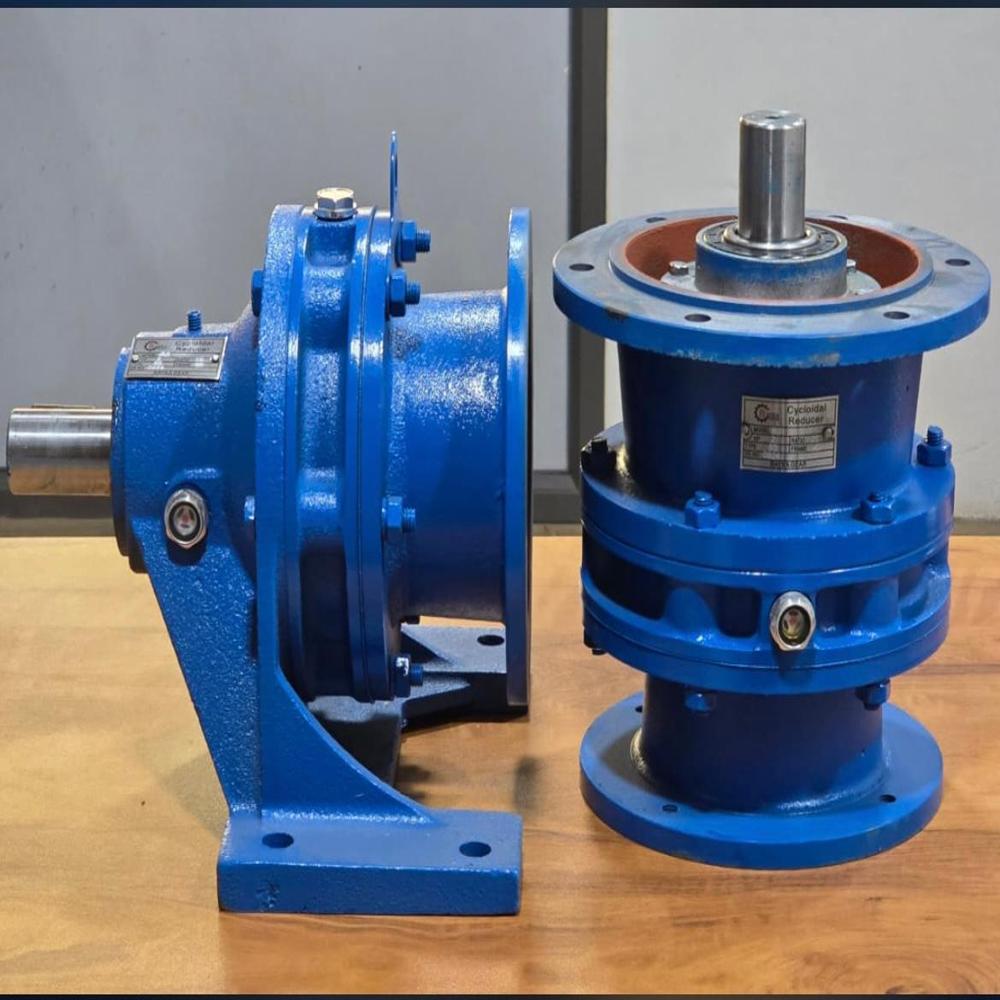

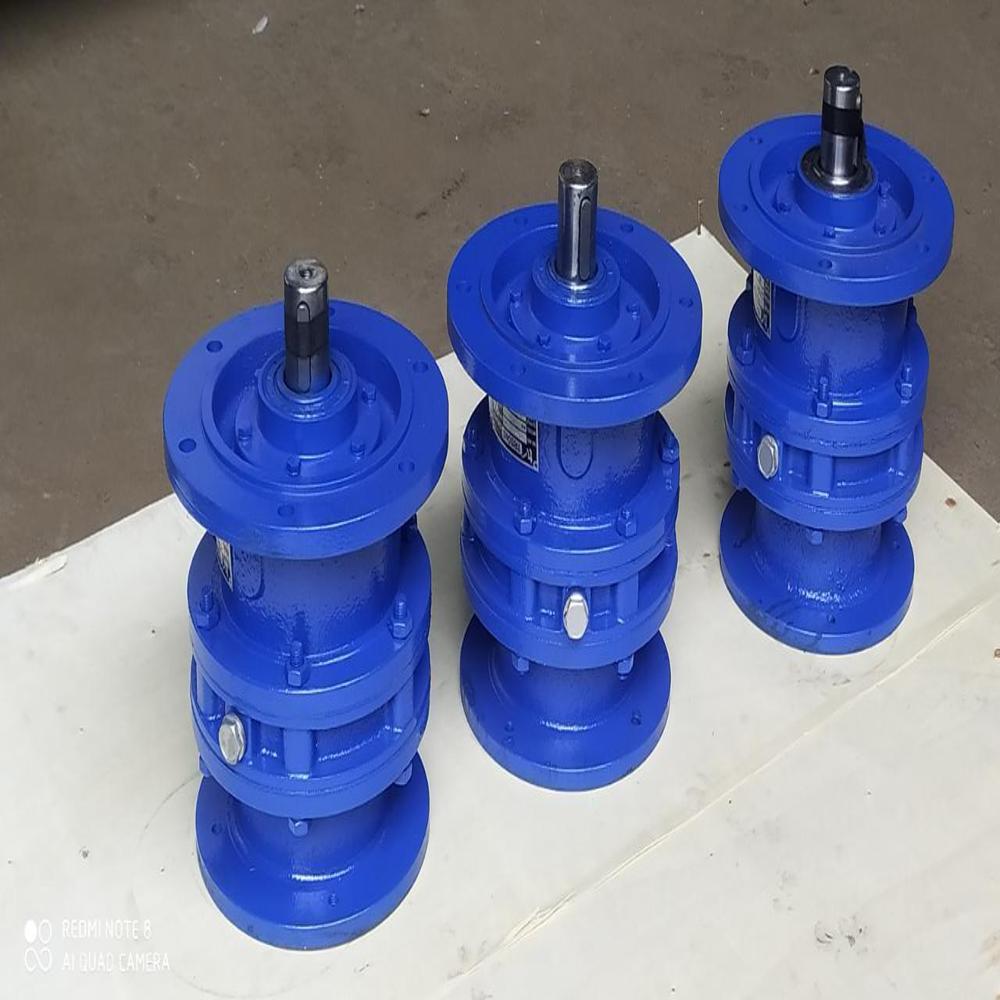

CYCLOIDAL GEARBOX WITH MOTOR DETAILED SPECIFICATIONS

1. General Details

• Type: Cycloidal Gearbox with Motor (Cyclo Drive)
• Design: Cycloidal Disc & Pin Wheel Mechanism
• Configuration: Inline / Vertical / Horizontal
• Mounting: Foot Mounted / Flange Mounted

2. Motor Specifications

• Motor Type:
  • 3 Phase Induction Motor
  • Single Phase (small sizes)
  • Brake Motor (optional)
  • Explosion Proof Motor (optional)
• Power Range:
  • 0.25 HP to 50 HP (0.18 kW to 37 kW)
• Voltage:
  • 415V 10%
  • 50 Hz
• Speed:
  • 750 RPM
  • 1000 RPM
  • 1440 RPM
  • 3000 RPM
• Protection:
  • IP55 / IP65
• Duty:
  • S1 Continuous Duty

3. Gear Parameters

• Gear Type: Cycloidal Disc
• Mechanism:
  • Eccentric bearing + cycloidal disc + pin ring
• Material:
  • Alloy Steel (Hardened)
• Hardness:
  • 5862 HRC
• Shock Load Capacity: Very High

4. Reduction Ratio

• Custom Ratio: Available

5. Output Parameters

• Output Speed:
  • 1 RPM to 150 RPM
• Output Torque:
  • 200 Nm to 30,000 Nm
  • (Heavy duty models up to 50,000 Nm)

6. Shaft Details

Output Shaft

• Hollow Shaft (Standard )
• Solid Shaft (Optional)
• Keyway / Shrink Disc

Shaft Diameter

• 25 mm to 120 mm

7. Housing (Body)

• Material:
  • Cast Iron (FG200 / FG260)
• Construction:
  • Heavy-duty rigid housing
  • Vibration absorbing design

8. Bearings

• Type:
  • Eccentric Roller Bearings
  • Heavy Duty Ball Bearings
• Design Life:
  • Long life under shock load

9. Lubrication

• Method:
  • Oil Bath / Grease Lubrication
• Oil Grade:
  • ISO VG 220 / 320

10. Efficiency

• Efficiency Range:
  • 85% to 92% (depends on ratio)

11. Noise & Vibration

• Noise Level: Low
• Vibration: Very Low (due to multi-contact mechanism )

12. Cooling

• Natural Cooling
• Optional Fan Cooling

13. Protection

• IP Rating: IP55 / IP65
• Sealing: Oil seal + dust protection

14. Temperature

• Working Temp:
  • -10C to +50C
• Max Oil Temp:
  • 80C

15. Mounting Positions

• Vertical
