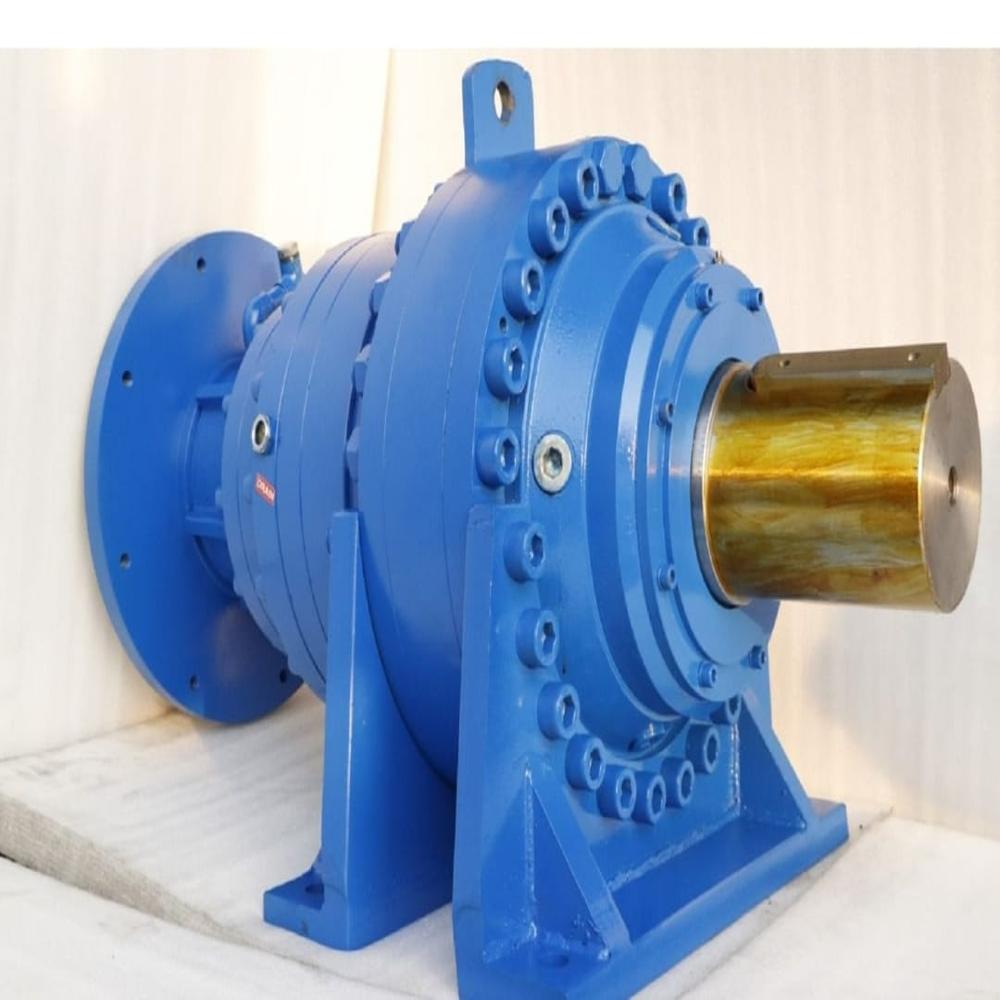

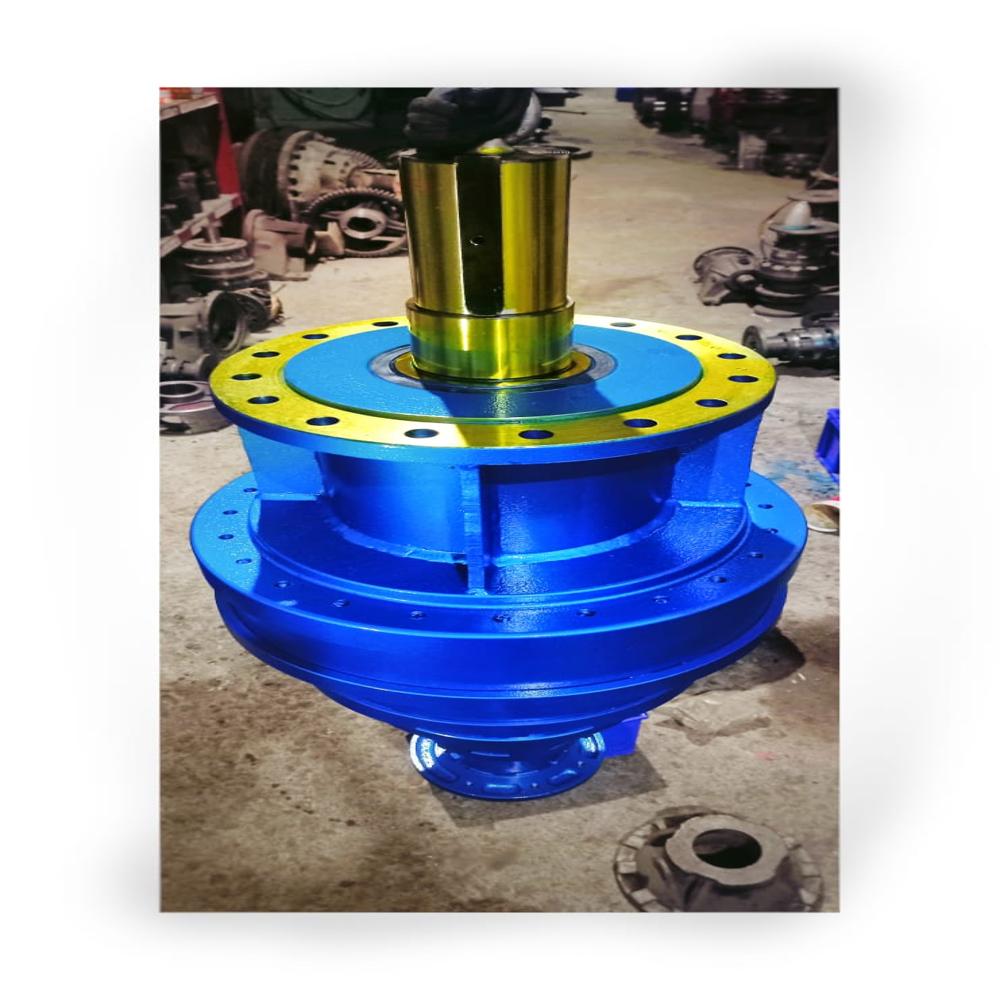

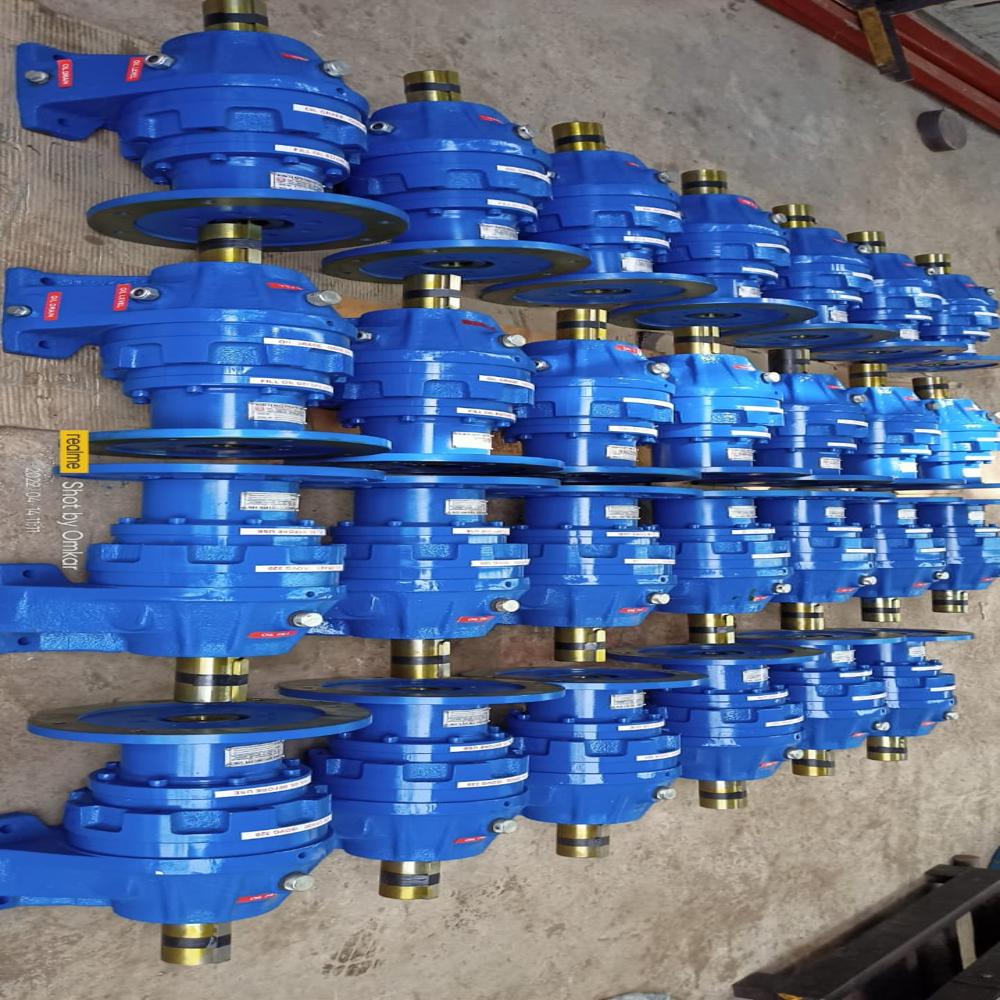

Planetary Gear Box

About Planetary Gear Box

Product Description
Planetary Gearboxes are compact, high-torque gear reduction units designed for heavy-duty industrial applications. The gearbox consists of a central sun gear, multiple planet gears, and an outer ring gear, which together provide high torque transmission in a compact design. Due to their load sharing capability among multiple gears, planetary gearboxes offer excellent efficiency, durability, and high power density.

Gear Type Used

Sun Gear (Central Gear) Drives the planet gears from the center.
Planet Gears (Multiple Gears) Rotate around the sun gear and share the load equally.
Internal Ring Gear Outer gear with internal teeth that supports the planet gears.

Motor Power Range

0.5 HP 500 HP
(0.37 kW 375 kW)

Ratio Range

3:1 1000:1
(Multiple stages can achieve higher ratios)

Torque Range

500 Nm 500,000 Nm

Mounting Positions

Foot Mount
Flange Mount
Shaft Mount
Vertical Mounting

Customisation

Yes Customisable
Output Shaft / Hollow Shaft
Special Ratios
Motor Flange Adapter
Multiple Reduction Stages
Heavy Duty Design for High Torque Applications

Key Features

Very high torque capacity in compact size
Load sharing among planet gears increases durability
High efficiency (9597%)
Suitable for heavy-duty and shock load applications
Compact and space-saving design

Typical Applications

Crushers
Heavy Duty Conveyors
Mining Equipment
Wind Turbines
Cement Industry Machinery
Steel Plants
Mixers & Agitators
