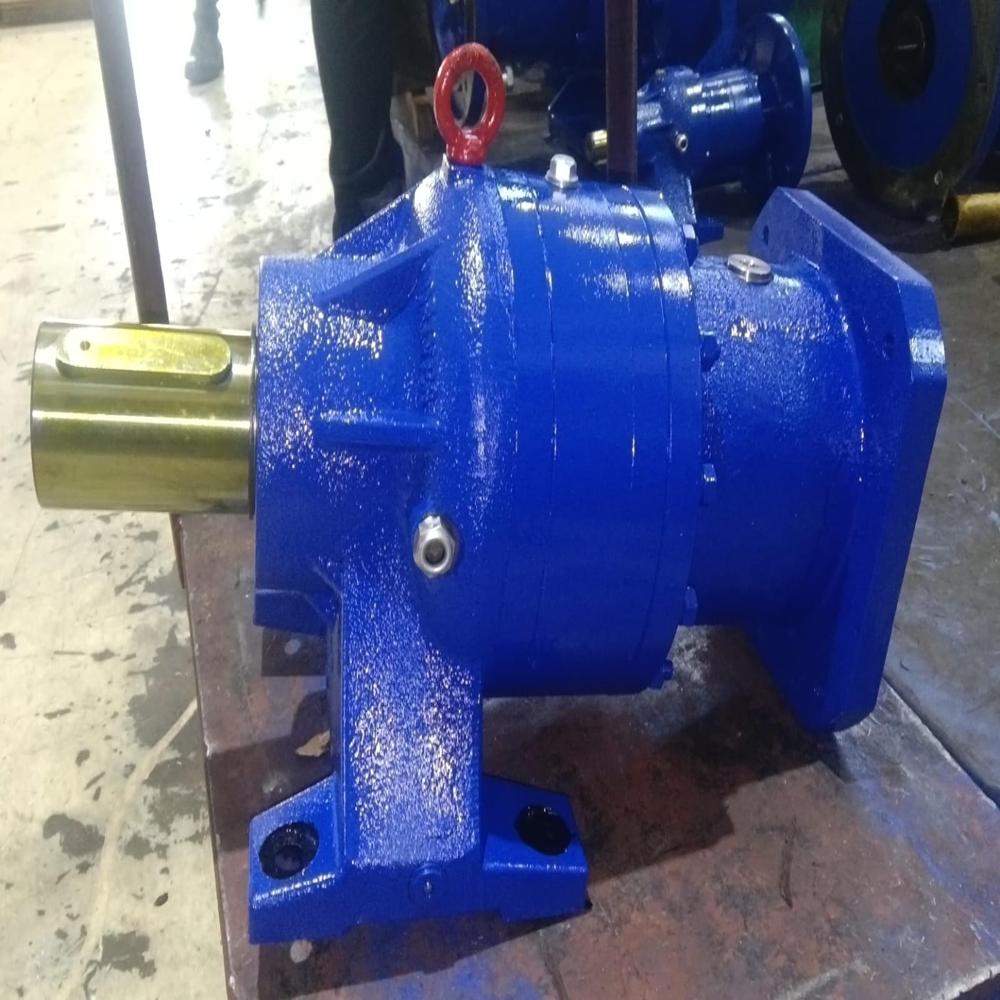

Industrial Planetary Gearbox for Servo Motor

About Industrial Planetary Gearbox for Servo Motor

General Specifications

• Gearbox Type: Industrial Planetary Gearbox
• Application: Servo Motor Drive System
• Mounting Type: Inline / Flange Mounted / Foot Mounted
• Gear Stages: Single Stage / Multi Stage
• Housing Material: High Grade Aluminum / Cast Iron
• Gear Material: Hardened Alloy Steel
• Lubrication: Synthetic Grease / Lifetime Lubrication
• Protection Class: IP54 / IP65
• Efficiency: Up to 95% 97%
• Noise Level: Low Noise Operation

Technical Specifications

• Gear Ratio: 3:1 to 1000:1
• Backlash: 1 Arc-Min to 15 Arc-Min
• Rated Input Speed: 1500 RPM to 3000 RPM
• Maximum Input Speed: Up to 6000 RPM
• Output Torque: 10 Nm to 2200 Nm
• Service Factor: 1.0 2.0
• Operating Temperature: -20C to +90C
• Rotation Direction: Bi-Directional

Servo Motor Compatibility

• Suitable For: AC Servo Motor / BLDC Servo Motor
• Servo Brands Compatibility: Delta, Siemens, Panasonic, Mitsubishi, Yaskawa, Fuji, Schneider, ABB
• Input Flange: Customized Servo Input Flange Available
• Motor Mounting: IEC / NEMA Standard
• Input Shaft Type: Solid Shaft / Hollow Shaft

Mechanical Specifications

• Output Shaft Type: Keyway / Splined / Hollow Shaft
• Output Shaft Diameter: As per Requirement
• Radial Load Capacity: High Load Bearing Design
• Axial Load Capacity: Heavy Duty Industrial Use
• Bearing Type: Precision Roller Bearing

Features

• High Torque Density
• Compact Industrial Design
• Low Backlash for Precision Motion
• Smooth & Vibration Free Operation
• High Positioning Accuracy
• Heavy Duty Industrial Performance
• High Load Carrying Capacity
• Long Service Life

Industrial Applications

• CNC Machines
• Robotics & Automation
• Packaging Machines
• Printing Machinery
• Conveyor Systems
• Pharmaceutical Machinery
• Textile Machinery
• Material Handling Equipment
• Industrial Automation Systems
