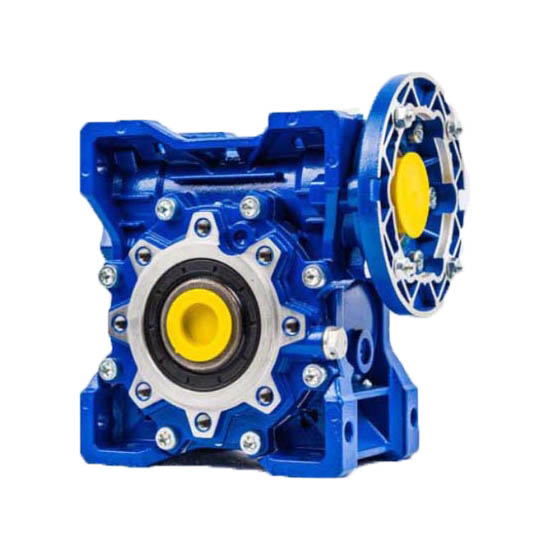

NMRV Reducer Gearbox

Name: NMRV Reducer Gearbox
Brand: ENNOWERA ENTERPRISE
Price: 3000-100000 INR
Availability: InStock

Price 3000-100000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

NMRV Reducer Gearbox Specification

Gear Type
Worm Gear

Material
Aluminium Alloy Body, Cast Iron Flange

Processing Type
Die Casting & CNC Machined

Gear Tooth Profile
Worm & Wheel Precision Ground

Gearing Arrangement
Right Angle

Direction
Bidirectional

Output Torque
Up to 300 Nm (Model Dependent)

Rated Power
0.18 kW to 15 kW

Input Speed
1400 RPM

Output Speed
14 RPM to 280 RPM

Voltage
415V, Three Phase

Efficiency
Up to 90%

Service Life
Designed for Long Life

Mounting Type
Foot and Flange

Output Shaft Diameter
14 mm to 40 mm (Model Dependent)

Lubrication
Synthetic Oil

Protection Class
IP55

Noise Level
Low

Ambient Temperature
-10°C to +40°C

Shaft Material
High Strength Steel

Gear Ratio
7.5:1 to 100:1

NMRV Reducer Gearbox Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Day

Delivery Time
2 Months

About NMRV Reducer Gearbox

The NMRV Reducer Gearbox is a general term, it refers to the aluminum shell reducer, and it has been accustomed to call the aluminum shell gear box "NMRV gear box" internationally. The gearboxes are made of good quality materials, surface treatments, spares and technical process for NMRV&NRV worm reducer to increase both resistance and reliability. The reducer is a commodity with sophistcated design and continous improvements. The reducing gearbox or reduction gearbox has teeth on the pinions and wheels that mesh with each other. NMRV Reducer Gearbox is very useful.

Reliable Performance in Demanding Conditions

The NMRV Reducer Gearbox is designed for consistent operation in ambient temperatures from -10C to +40C. With IP55 protection and die-cast, CNC-machined components, it withstands harsh industrial environments. The combination of high-strength steel shafts and a worm gear arrangement allows for efficient, bidirectional power transmission-ideal for continuous-duty applications.

Versatile Installation and Mounting Flexibility

Featuring both foot and flange mounting types, this gearbox adapts easily to new or existing systems. The cast iron flange provides added stability, while the aluminium alloy body ensures a lightweight, corrosion-resistant solution. Multiple output shaft diameters (14 mm to 40 mm) support a variety of equipment setups, making installation straightforward for manufacturers and end users.

Superior Efficiency and Extended Service Life

Harnessing synthetic oil for lubrication and utilizing precision ground worm & wheel gears, this gearbox achieves up to 90% efficiency with minimal noise. Its design maximizes operational lifespan and minimizes downtime, ensuring high return on investment for industrial clients. Suitable for rated powers ranging from 0.18 kW to 15 kW, it provides optimal energy use.

FAQ's of NMRV Reducer Gearbox:

Q: How is the NMRV Reducer Gearbox installed in industrial machinery?

A: The NMRV Reducer Gearbox can be mounted using either the foot or flange method, allowing for flexible integration into various equipment setups. Proper alignment and secure fastening are recommended to ensure efficient performance and prolonged service life.

Q: What benefits does using synthetic oil lubrication provide for this gearbox?

A: Synthetic oil enhances the NMRV Reducer Gearbox's lubrication by reducing friction and wear, contributing to higher efficiency, lower operating temperatures, and extended service life, even under continuous operation.

Q: When should this gearbox be used in industrial applications?

A: This gearbox is ideal for applications requiring right-angle, bidirectional power transmission with high torque, variable gear ratios (7.5:1 to 100:1), and robust environmental protection. It's suitable for use in conveyors, mixers, and material handling equipment.

Q: Where can I purchase or source the NMRV Reducer Gearbox in India?

A: The NMRV Reducer Gearbox is available through authorized distributors, exporters, manufacturers, service providers, suppliers, and traders across India, providing technical support and installation services as required.

Q: What is the process for maintaining the NMRV Reducer Gearbox?

A: Routine maintenance includes checking oil levels, inspecting seals and shafts, and ensuring the gearbox is free of dust and debris. Following the manufacturer's guidelines for synthetic oil replacement and periodic checks guarantees reliable operation.

Q: How does the gearbox ensure low noise and high efficiency during operation?

A: The gearbox features precision-ground worm & wheel gears and is engineered with high-strength steel shafts. This design minimizes mechanical losses and vibration, resulting in low noise and efficiency rates up to 90%.

Q: What advantages does the aluminium alloy body provide?

A: The aluminium alloy body offers a lightweight, corrosion-resistant construction while maintaining robust strength. This reduces overall machine weight and ensures durability in challenging industrial environments.
