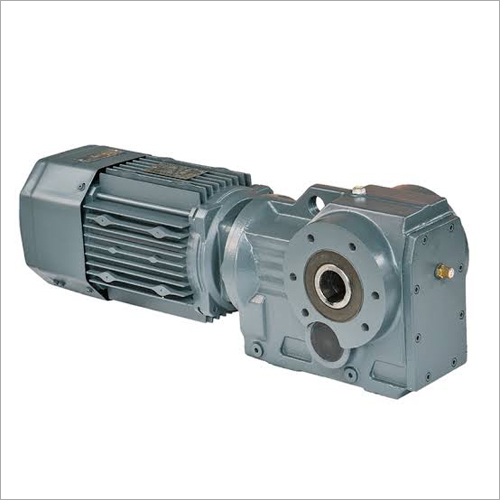

Bevel Helical Gearbox

About Bevel Helical Gearbox

Bevel Helical Gearboxes are heavy-duty industrial gear reducers designed for right-angle power transmission. These gearboxes combine helical gears for smooth power transmission and bevel gears for direction change (90). They offer high efficiency, high torque capacity, and reliable performance in continuous-duty industrial applications.

Gear Type Used

Helical Gears Used in the initial stages for smooth, efficient power transmission with low noise.
Bevel Gears (Spiral Bevel) Used in the final stage to change the direction of power transmission by 90.

Motor Power Range

1 HP 200 HP
(0.75 kW 150 kW)

Ratio Range

5:1 300:1

Torque Range

200 Nm 80,000 Nm

Mounting Positions

Foot Mount (Horizontal)
Flange Mount (B5 / B14)
Shaft Mount
Vertical Mounting

Customisation

Yes Customisable
Hollow Shaft / Solid Shaft
Special Output Shaft Size
Motor Flange Adaptor
Special Ratios
Cooling System (Fan / Oil Cooling for heavy duty)

Key Features

High efficiency (up to 9598%)
High torque transmission capability
Suitable for continuous industrial operation
Compact design with high load capacity
Smooth and low-noise operation

Typical Applications

Conveyor Systems
Material Handling Equipment
Steel Plants
Cement Plants
Mixers & Agitators
Cooling Towers
Packaging Machinery
